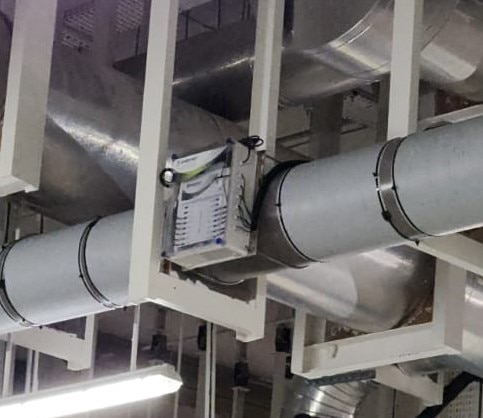

Kashyap Anti-scale System
Technical DataDownload Model Capacity Max. Pipe Diameter Impulse Cable Required Space Approx Residential K-2 2 m3/h 1“ (25 mm) 1m x 2 400 mm K-10 10 m3/h 2” (50 mm) 3m X 2 800 mm Commercial K-25 25 m3/h 3“ (75 mm) 3m X 4 950 mm K-50 50 m3/h 4” (100 mm) 4m X 4 1200 mm K-100 100 m3/h 6“ (150 mm) 5m X 6 1500 mm Industrial K-200 200 m3/h 8” (200 mm) 10m X 8 2700 mm K-350 350 m3/h 14“ (350 mm) 16m X 10 3000 mm K-500 500 m3/h 20” (500 mm) 25m X 12 8000 mm K-1000 1000 m3/h 30“ (760 mm) 30m X 16 15,000 mm Customized sizes available for large industrial line up to 40 pipe diameter Power Supply : Input volrage 100 – 240 volt 50 – 60 Hz Output voltage 24 volt 625 mA Maximum consumption 3.75 w. Residential Line Technical Data Sheet KASHYAP K-2 Capacity 2m3/h Maximum pipe diameter 1”(25mm) Voltage 24 Volt DC Wattage 2.00 Watt Impulse Cable 2 X 1 mtr Measurements Main Unit 150/150/40 mm Frequency range 3-32 KHz Required space 500 mm Programs 01 Electronic Switching power supply unit In 87-260 Volt 50-60Hz Out 24 Volt 625 mA The Kashyap K-2 has been designed to solve scale problems arising due to hard water in privates’ houses and bunglows. It protects the piping systems, water heaters, showers and faucets, washing machines etc against the hard scale deposit. Eco-friendy solution against scale and rust. Keeps pipes and appliances clean. Works on every pipe material - iron, copper, plastic, steel. Long life fully Weather Proof IP65 Box. Easy installation without opening the pipes. 5 year-warranty. 100% Non Magnetism. Scope of delivery 1 Kashyap K-2 Electronic unit 2 Kashyap Impulse Bands - 2x1 mtr 1 Power supply. 1 Product brochure. 1 Warranty card. 10 Cable clips & Accessories. Shipping Measurements (gross) weight 2.5 kg. size 14 x 12 x 4 cm.

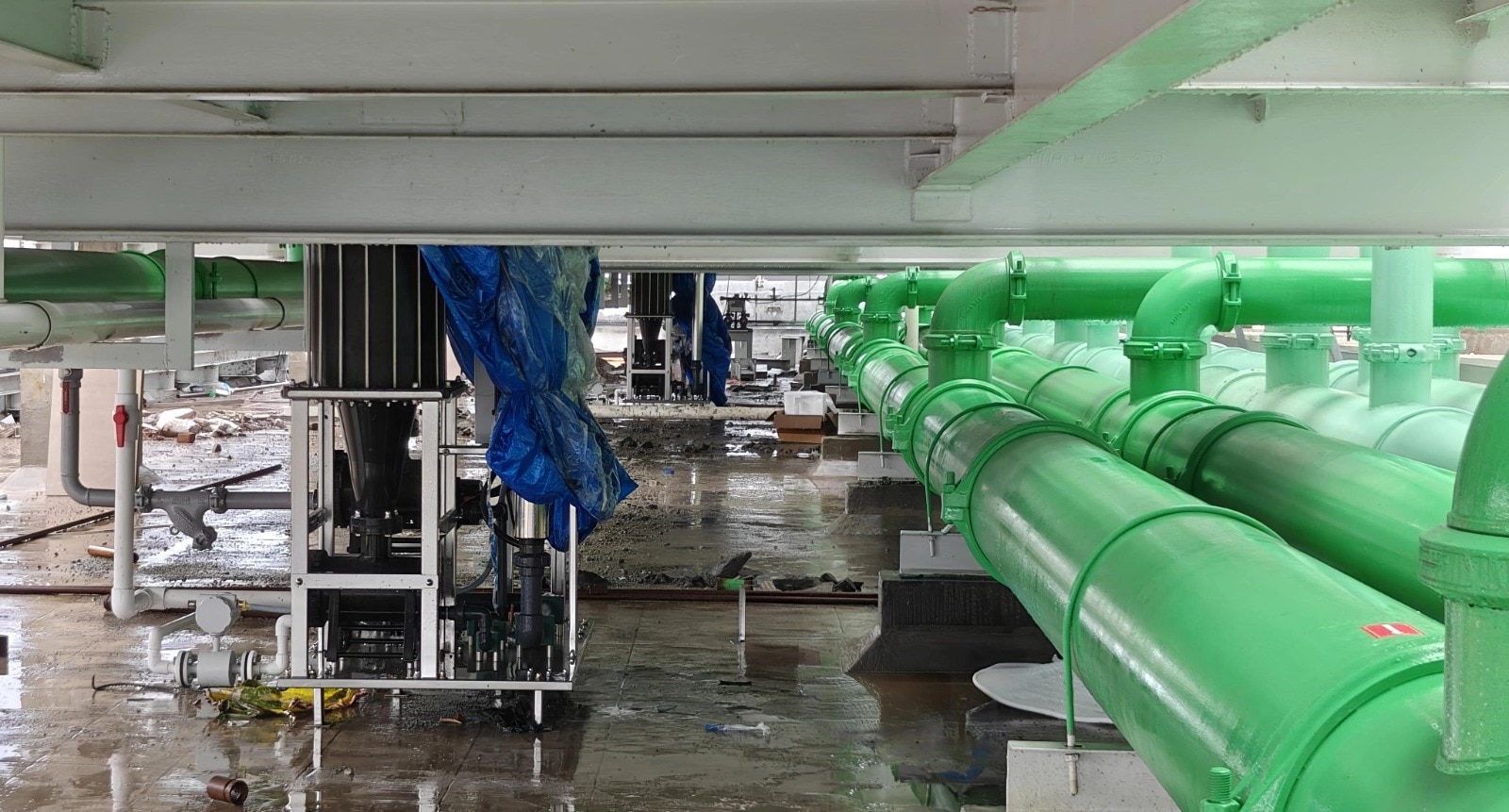

Kashyap Auto-BFSR System
Kashyap Auto-BFSR System Extremely effective Chemical free water Treatment Technology for cooling Tower Systems. Prevents Bio-Fouling and Removes Scale, thus reducing blow down water consumption and also reduces costs. BENEFITS : Chemicals free, Resulting in 100% saving on chemical cost. Reduction in Blow down and Make up water upto 80% Inhibits corrosions in cooling tower piping system. Improves the overall efficiency of the cooling tower system. Results in energy and water savings. Blow down water can be reused for gardening. Produces oxidants in the water and prevents Biofouling in water. FEATURES : Kashyap Auto-BFSR is a fully Auotmated loT based system working on electrolysis Technology. Scale is removed from cooling tower water cycles which is deposited in the electro chemical chamber Automatically. The Electrolytic chamber is equipped to do Auto cleaning and draining. Hydro Cyclon filter with auto-back wash. User friendly display panel including conductivity or TDS. Easy installation with no plant shut down required. Easy monitoring and negligible maintenance cost. Eco Friendly Technology Causes & Effects Of Fouling In Cooling Water Systems : Water Consumption Water reduction, reuse and recycling investments often have quick paybacks, especially when one considers the multiple businesses benefits water efficiency can provide – lower operation costs, comply with ecological concern, reduce carbon footprint, and improve its environmental performance. Energy Consumption Water–based cooling systems suffer from fouling and scaling. This fouling reduces the heat transfer in condenser tubes leading to increased energy consumption and reduced chiller system efficiency. Maintenance Cooling system water quality directly affects the reliability, efficiency and operating cost of the industrial or institutional cooling system. Factors such as Corrosion, Scale, Bio–fouling and Algae in cooling water results in reduced cooling efficiency, high electricity and water consumption, unnecessary increased downtime and reduced equipment life expectancy.


AVM Pads for Diesel Generator Set
Vibration Isolation Systems For Diesel Generator Set using spring support has been a great success in the world market in competition to the standard rubber support systems. Our system with very low natural frequency offers high vibration isolation efficiency in the range of 95%. life of the mounts is high. hence no replacement or maintenance - only one time cost. The mounts do not react with the leaked oil of your DG-set Bolting to the machine or to the foundation is not necessary. Several machines can be put on the same floor without separating foundations- Substantial reduction in foundation size that compensates the cost of spring mounts. The only technical solution for installation of DG-sets on higher floors. Advantage: High Vibration Isolation efficiency-95% High Life, reducing replacement downtime No detonation or change in property with time Does not react with leaked engine oil Minimum foundation requirement Only solution for good rooftop installation Reduction in structure-borne noise No permanent grouting-supplied with self adhesive pads Service & back-up support from team of qualified engineers German technology & engineering
